Chenyang MFG is a premier manufacturer that specializes in customizing a wide variety of sheet metal parts. We have the latest cutting, bending, welding, and finishing equipment with advanced features to ensure accuracy, efficiency, and the ability to handle intricate designs. We work with a variety of materials, thicknesses, and finishes to meet your specific needs. Contact us today for a high-quality solution that meets your exact requirements.
Your Trusted Source for Sheet metal
Looking for sheet metal parts you can count on? Look no further. At Chenyang MFG, we’re proud to be your go-to source for a wide range of sheet metal parts. Our product line is designed to serve a variety of industries and applications, ensuring you get the custom solutions you need, when you need them.
We’re experts in sheet metal technology. Chenyang MFG specializes in custom sheet metal parts of all sizes, shapes, and functions. We make sheet metal parts to your exact specifications.
some products
Tailored sheet metal parts for Every Venture
cover of lamp
charging pile
4U Cabinet
Hardware
Water Filter Housing
Y-Type Metal Joint
Custom Sheet Metal needs
At Chenyang MFG, we know that precision matters. With our extensive knowledge of sheet metal technology, we make custom sheet metal parts of all sizes, shapes and functions. No matter what you need, we’ll make it.
Custom: We make it to your specifications, so it fits your project perfectly. You get what you need, not what we have.
Variety of Sheet Metal Types : We have all kinds of sheet metal to meet your specific needs.
Finishes: We offer all kinds of finishes (powder coated, painted, anodized, electroplated, galvanized, sandblasted, etc.) for durability and looks.
Please send us the model of the product you need to process and let us know the surface treatment you need. You can send us a 2D drawing or a 3D drawing. Once we have that information, we will get back to you quickly with a detailed solution.
more than a Sheet meal manufacturer
It’s not easy to cover everything about custom sheet metal parts, so we put a lot of information on this page for you to dive into. To make sure you can quickly find the information you’re looking for, we put this table of contents together. Just click on the link and it’ll take you right to that section.
General Applications For Sheet Metal
Sheet metal parts are used in many industries because they are versatile and can be formed into many shapes. Here are some of the main industries that use sheet metal parts:

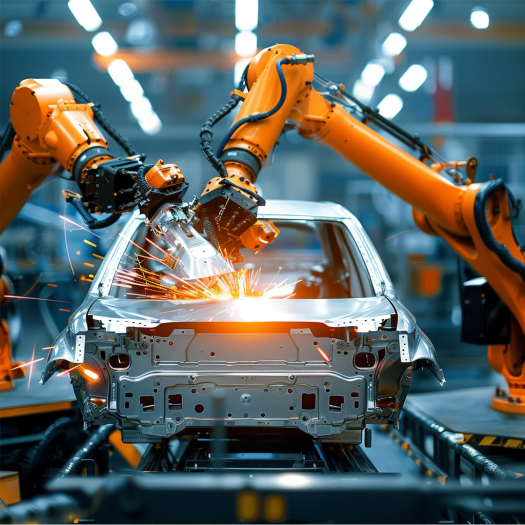

- Automotive industry: Sheet metal is used to make the body, hood, doors, trunk lid, exhaust system and many other parts.
- Aerospace industry: used to make the wings, fuselage, access doors and many other parts.
- Electronics industry: used to make the housing and frame for computers, cell phones, televisions, stereos and many other products. It is also used to make fixtures for circuit boards.
- Communication industry: used to make the housing and brackets for communication equipment, such as base station equipment, network switch equipment cabinets and many other products.
- Home appliance industry: used to make the housing and internal structure for washing machines, refrigerators, air conditioners, microwave ovens and many other products.
- Construction industry: used to make roofing materials, ventilation systems, door and window components and many other products used in construction.
- Machinery Manufacturing Industry: used to make the fuselage, protective cover and many other parts for industrial robots, automated production line equipment, pumps, fans and many other types of machinery.
- Energy industry: used to make brackets, housings and many other components used in the manufacture of solar power, wind power and traditional energy equipment.
- Medical equipment industry: used to make the structure and exterior design of medical diagnostic equipment, surgical instruments, hospital beds and many other products used in the medical industry.
Main Process for Sheet Metal
The sheet metal production process typically starts with design, using computer-aided design (CAD) software to create accurate drawings and models. You then select the appropriate materials for the design requirements and cut them into rough shapes (e.g. laser cutting or waterjet cutting). You then stamp, bend, and otherwise manipulate the part into its final shape. If necessary, you weld or otherwise join the part together. Finally, you apply surface treatments such as buffing, painting, or plating to improve the appearance and durability of the part, do quality checks to make sure each part meets specifications, and then package and ship the part to complete the production process.
cutting
- Before you start making parts, you need to draw your parts using computer-aided design (CAD) software, and you need to plan your machining operations based on how you’re going to machine the parts.
- You need to choose the right sheet metal and get the materials cut to the right size for the operations you’re going to perform.
- Based on the machining program, you’ll set the parameters like the force for punching and shearing, the speed, and where the tool is..
- You need to load your program into the control of the machine.
The machine moves the sheet metal into place on its own, then punches and forms it in the punching section, and then cuts and forms it in the shearing section.
stamping
- Stamping molds are designed based on the product requirements. This is often done using CAD software for 3D design to ensure the molds can make the parts you need.
- Once you have the design drawings, you make the stamping dies using equipment like machining centers (CNC machines), electric discharge machines (EDM), and grinding machines.
- You choose the right sheet metal based on the requirements of the stamped part. Common materials include stainless steel, carbon steel, aluminum alloy, copper alloy, and so on.
- You get the material ready by doing things like cutting it to the right size.
Set up the mold: Put the mold you made into the punch press.
Fine tune the machine: Adjust the settings on the press (press force, stroke, speed, etc.) to make sure the die and the machine work well together.
Start making parts: Begin a production run where a sheet of metal is cut, formed or stretched by the die to make the part you want.
Make lots of parts: For high-volume production, you’ll often use progressive dies and automatic feeding equipment to make parts faster.
bending
- Use CAD software to make design drawings of the parts.
- Decide how to bend the part and what settings to use on the machine to do it.
- Choose the right kind of sheet metal for the part, considering things like how thick it is, what it’s made of (like stainless steel or aluminum), and how strong it is.
- Pick the right top and bottom dies for the job. Set the settings on the machine, like how hard it clamps down, how far it bends, and how much space is between the dies.
Position the material: Position the sheet metal between the dies of the bending machine so it’s in the right place.
Bend it: Use the bending machine to push the sheet metal until it bends along the line you want it to bend along.
Bend it again: Repeat the bending process in the order and direction you planned for parts that need to be bent more than once.
welding
- Design your welds to be strong enough for the loads and conditions they’ll experience.
- Choose the right welding process for the material, thickness, joint type, and production conditions. You might use arc welding, gas-shielded welding, laser welding, and so on.
- Select the right materials for your design.
- Make sure the metal is clean. Remove oil, rust, paint, and anything else that’s on the metal where you’ll be welding.
Preheating: Preheat as necessary to reduce welding stress and distortion.
Positioning and clamping: Position and clamp the parts you’re welding accurately to hold them in place while you’re welding.
Welding: Weld according to the welding procedure to make sure the welds are good enough for your design.
Welding control: Watch the welding parameters (like current, voltage, and speed) and watch the shape of the weld as you’re welding. Adjust if you need to.
riveting
- Choose the right rivet (size and material) for the type and thickness of the things you want to join.
- Decide where and how many rivets you need and how strong the joint must be.
- Get the things you want to join ready, making sure they’re clean and don’t have any grease on them.
- Mark where the rivets go based on your design.
Assemble the mold: According to the type and size of the selected rivet, install the appropriate mold to the riveting machine.
Adjust Pressure: Set the pressure of the riveting machine to ensure that the rivets can penetrate the material smoothly and form a tight connection.
Place Workpiece: Place the pre-prepared part under the riveting machine to ensure that the rivets are correctly positioned.
Execute Press Rivet: Activate the riveting machine and the rivets are pressurized to penetrate the material and form an extension or curl on the backside to securely connect the parts.
finishing
- Clean the surface to get rid of grease, dust, rust, or anything else that might be on there. You can use a solvent, a strong cleaner, or an ultrasonic cleaner.
- Smooth out any sharp edges that were created when the metal was cut. You don’t want those edges to damage the equipment or the final product.
- Make the surface rougher so the coating will stick better. You can do this by sanding it, blasting it with sand or beads, or using a strong cleaner to eat away a little bit of the surface.
- For painting or certain chemical treatments, you’ll need to let the coating dry by baking it or just letting it sit out. For some anodized treatments, you’ll need to put a seal on them to make them work better.
Electroplating: We put the parts we’re treating in a bath of electrolyte that has metal ions in it. The metal ions stick to the part because of the electric current flowing through the bath. This forms a layer of metal on the part.
Anodic oxidation: We put the metal parts in a bath of electrolyte that has a specific chemical in it. We hook the part up to the positive side of the power supply. When we turn on the power, a protective layer of aluminum oxide forms on the part.
Powder Coating: We use a special piece of equipment to spray powder coatings onto metal parts.
Paint spraying: We spray primer to help the final coating stick better and to help keep the part from rusting.
Inspection & quality control
- When we start a new batch, we take the first sheet metal part that comes out of the machine and inspect it to make sure it meets all the parameters and quality standards we need.
- As we’re making parts, we do spot checks to make sure we’re hitting the quality control points of the critical operations like cutting, bending and welding.
- Use calipers, vernier, salt spray tester, high and low temperature tester, CMM and other tools, film thickness gauge, test the size and geometry of sheet metal parts to ensure compliance with the drawing requirements.
- After the sheet metal parts are painted, plated or have some other kind of surface treatment, we check them to make sure the finish is good, the color is consistent and there are no defects.
Integrity Check: A final look at the sheet metal part as a whole and in detail, including its structural integrity, weld joints, and how well it fits together.
Functionality testing: If needed, we’ll do functionality testing to make sure the sheet metal part does what it’s supposed to do in the way it’s supposed to do it.
Packaging Inspection: We’re going to make sure the sheet metal parts are not damaged before they get packaged and that they’re packaged in a way that will keep them from getting damaged while they’re being shipped.
assembling
- Examine the assembly drawings carefully to figure out how each part connects to each other and the order in which they go together.
- Use the assembly drawings and the product structure to come up with a good way to put the thing together so that it goes together fast and right.
- Put each piece of sheet metal where it goes according to the drawing and temporarily hold it there with a clamp or something.
- Connect and secure the pieces with screws, rivets, welding or glue, depending on what the drawing says to do. After each connection, make sure it’s tight and in the right place.
Functional testing: Test the assembled products to make sure they work. For example, check that the moving parts move the way they’re supposed to, make sure the things that are supposed to be stable are stable, etc. Make sure the products work like they’re supposed to.
Surface treatment and cleaning: Put the final surface treatment on the assembled products. For example, paint or varnish them if they need it. Clean the products to get any stains or fingerprints off that happened during assembly.
Packaging & Shipping
- Do a final check of the sheet metal parts before you put them in the box to make sure they’re the right size, you have enough of them, and they look good. Wipe off the parts to get rid of dust, oil, or other stuff so they’re clean.
- Put something on the parts that can get scratched. You can put a film on them, use foam, or do something else to protect them.
- If the parts can get wet, put something in the box with them to keep them dry. You can use stuff called desiccant, and you can wrap the parts in plastic to keep the water out.
- Put something in the box with the parts to keep them from bumping into each other and breaking. You can use foam, bubble wrap, or stuff called an anti-vibration shim.
Boxing or Palletizing: Depending on the size and shape of the sheet metal parts, we’ll pick the right cartons, wooden crates, boxes, or wooden pallets to put them in. If they’re big or heavy, we’ll put them right on a pallet and wrap them with that plastic wrap.
Filler: We’ll use filler materials like foam peanuts, or shredded paper to fill in the empty spaces to make sure the product doesn’t move around and is stable during transportation.
Load packaged sheet metal parts into trucks or containers, depending on whether they’re going by land, sea or air. Make sure they’re secure, using straps or other fasteners as needed.
Wanna dig deeper in custom sheet metal?
Estimated Cost Analysis For Sheet Metal
Please note that the final cost depends on the customized service you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation. Take the example of booking a tall container of products:
This price includes the cost of the material and the processing to make the sheet metal parts. Sheet metal processing includes a bunch of different processes like cutting, bending, stamping, and so on. Each one of those things is in the cost.
$53,000
Take US as a example, a bunch of things affect the price: how far the stuff has to go, how much it costs to put gas in the boat, how much the boat can carry, and what’s going on in the world with shipping. The price goes up and down over time based on what’s happening in the world.
$4,300
Customs duties and taxes: When you import sheet metal parts, the importing country might charge you customs duties and taxes. Insurance costs: Typically, you buy insurance for your goods to cover any risks that might happen during transit. Warehousing costs: You may have to pay to store your goods until they get to where they’re going. Logistics costs: You’ll also have to pay for logistics in the destination country, like trucking fees, loading and unloading fees, etc.
$1,000The Process Flow & Duration Estimation
Please note that how long it takes to get your final product done depends on how complicated your custom is, how many steps there are, what you need specifically, how many you’re doing, and how long it takes to ship it.
Step 1: R&D drawings (3-7 days)
During the design phase, you’ll create the initial design drawings and do a feasibility analysis of the manufacturing process. This is where you make sure your design works both aesthetically and functionally and can be created with the technology you have access to. The length of this phase will depend on the complexity of your project and how many technical problems you need to solve.
Step 2: Sampling (7-14 days)
Once we’ve got the design nailed down, we move into the prototyping phase. This is where we make a few samples to test how the design works in the real world and how the manufacturing process is going to work. We may have to do this a few times, depending on how complicated the samples are and how many changes we have to make.
Step 3: Pay The Bill (within 1 day)
Payment terms vary depending on the supplier and the customer. Some suppliers may require a partial deposit before they start making your stuff. Others may require full payment when you confirm the sample.
Step 4: Bulk Manufacturing (30-45 days)
Once you’ve approved the samples and finished all the prep work, it’s time to move into production. The length of time it takes to produce your order will depend on the number of units you’re ordering, how efficient your production line is, and if you have any special processes. This step can take the longest, especially if you’re doing a big order.
Step 5: Shipping (10-45 days)
After you’re done making your product, you need to pack it up and ship it to your customer. How long it takes to get to them depends on how far away they are, what shipping method you choose (like air or sea), and what the shipping situation is like right now.
Want to know how to compress lead times?
⚡️Discover How to Cut the Lead Time for Your Custom Sheet Metal Parts⚡️
We get it. Time is money. You’re tired of waiting around for weeks and months for your projects to get done.
🔍 Want to get your custom sheet metal parts fast without sacrificing quality?
Enter your information below and we’ll show you:
- ✨ How our unique processes can cut your lead times
- 🛠️ The exact steps for designing and fabricating custom sheet metal parts
- 🚀 Our special rapid-response services to meet your needs fast
👉 Don’t wait. Enter your email address and get your next project done faster than anyone else.
[Leave Your Email]
We respect your privacy. Your information will be kept strictly confidential.
The Basic Knowledge About Sheet Metal

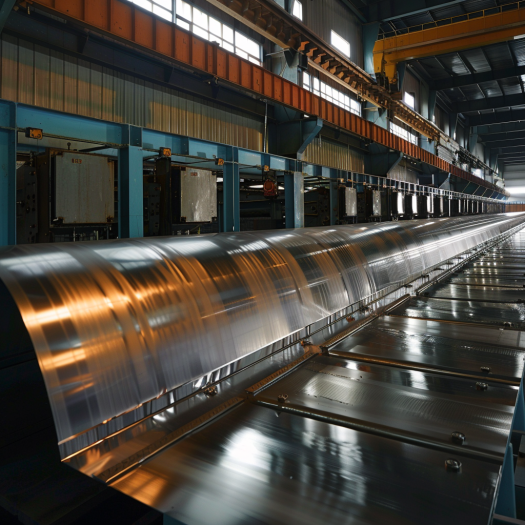

Sheet metal is an important material used in many industries because of its versatility and the fact that you can make just about anything out of it.
Sheet metal is a common raw material in the metalworking industry. It comes in thin sheets that can be cut and bent into a variety of shapes. Sheet metal can be made from a variety of metals, including stainless steel, aluminum, copper, and galvanized steel. It is used in many industries, including automotive, aerospace, construction, and appliance manufacturing. The choice of material depends on a variety of factors including strength, weight, corrosion resistance, and cost.
Sheet metal processing involves a variety of techniques, including cutting, bending, and assembly. Cutting can be done with a laser, plasma, or waterjet cutting machine to cut metal sheets with high precision. Bending is done with a press brake or bending machine to fold metal to the desired angle according to the drawing. Modern sheet metal processing may also include stamping, welding, or powder coating to meet specific functional and aesthetic requirements. By using these efficient and accurate processing methods, sheet metal parts can meet the requirements for rapid production while maintaining quality.
The Common Pitfalls When Purchasing
Sourcing sheet metal parts can be a real pain in the butt. If you don’t know what you’re doing, you can end up spending too much money, experiencing delays, or even getting stuck with crappy parts. Knowing what to look out for can help you make better decisions and keep your sheet metal procurement process running smoothly. Here are some of the most common things people screw up when they buy sheet metal parts:
- The Lure of Low Prices
- Communication barrier
- Inadequate quality control
- Delivery date problem
- Overpromise of technical capability
- Vague contract terms
Trap description: Some suppliers will quote you a low price to get you to buy, but the low price might mean lower quality materials, poor workmanship, or long delivery times.
Solution strategy: Do your homework to make sure the price you’re quoted is a fair reflection of the cost and value of the sheet metal parts. Talk to your suppliers about the manufacturing processes and material standards to make sure you’re not sacrificing quality and performance just to save a few bucks.
Pitfall: Language and cultural barriers can cause misunderstandings with foreign suppliers, which can lead to problems with product specifications and delivery times.
Solution: Choose suppliers who speak good English. Give them detailed specs and drawings and ask them to confirm they understand what you want.
Trap description: Some suppliers may not have done enough quality control, resulting in the delivery of sheet metal parts that are defective or do not meet specifications.
Solution strategy: Require suppliers to provide quality certification. Evaluate the supplier’s quality control process.
Pitfall Description: You don’t get your stuff on time, which throws off your project schedule.
Solution strategy: Keep an eye on your production schedule and stay in contact with your suppliers. If something’s going to be late, figure out how to fix it.
Pitfall Description: Suppliers might say they can do everything you want technically, but they might not have the technical skills or experience to do it.
Solution strategy: Ask the supplier for case studies or samples of similar projects they’ve done before. If you can, do a technical review to make sure they can do what you want them to do.
Description of the trap: Certain terms in the contract may be unclear and leave room for interpretation, which may lead to future disputes.
Solution strategy: Ensure that the terms of the contract are exhaustive and clear, covering all key points, including quality standards, delivery times, payment terms, breach of contract liabilities, etc.
A Brief Self-Nomination, Why Choose Chenyang MFG?
Chenyang MFG is all about sheet metal fabrication. We do it and we do it well. We work with customers in a variety of industries. We’ve been at this for more than 17 years, and we’re good at it. That’s why you should work with us.
You choose Chenyang MFG as our sheet metal parts supplier because we make good stuff, we know what we’re doing, and we offer all the extra services we need to help you win in our super-competitive market.
- Technology Innovation and Quality Assurance
- Customized Solutions
- Rapid Response and Timely Delivery
- Excellent customer service
- Competitive pricing
In conclusion, when you choose Chenyang MFG, you’re not just getting a supplier. You’re getting a partner you can count on. We’re confident we can help you take your business to new heights. We’re confident we can do it with our expertise and our hard work. Let’s do it together. Let’s start the journey to success.
The FAQs About Sheet Metal
If you’re an international buyer, these FAQs will help you learn more about buying sheet metal products and make better decisions. These FAQs cover everything from what sheet metal is and what it’s used for to the different ways it’s processed, how to choose the right material, design tips, and how to evaluate a supplier’s capabilities and reputation.
How to choose the right supplier?
When you’re choosing a supplier, you want to know if they can do the job, if they have a quality process, if they can deliver on time, if they have a good price, and if they have good customer service. You want to know if they’ve done the job before, if they’ve got good customer reviews, and if they’ve got credentials that make them reputable and capable.
What kind of materials make a difference in products?
Different stuff has different physical and chemical properties, like strength, hardness, corrosion resistance, and so on. These properties directly affect how the thing is used and how long it lasts. For example, stainless steel doesn’t rust and works outside or in wet places. Aluminum is light and used when you want to make something lighter.
What certificates do you need to process? What are the standards?
ISO 9001: The basic quality management standard.
ISO 14001: The environmental management system standard that says your factory doesn’t pollute.
Industry-specific certifications: For example, IATF 16949 for automotive, AS9100 for aerospace, etc.
What is the accuracy of the machine? What are the tolerances on the sheet metal parts?
Machine Accuracy: The machines used in sheet metal fabrication (laser cutting machines, punching machines, bending machines, etc.) are typically very accurate, with an accuracy of ±0.1mm or better.
Sheet Metal Part Tolerances: Standard tolerances for sheet metal parts are typically between ±0.1mm and ±0.5mm, but this can vary depending on the process and the material being used. Tighter tolerances can be achieved for specific applications, but this can impact cost and lead time.
How to deal with complex designs and drawings?
Technical review: Engineers at the sheet metal fabrication shop will first review the design and drawings in detail to make sure they are feasible and can be produced.
Software analysis: Use advanced CAD/CAM software to analyze and simulate the design to find any problem areas and make suggestions for improvements.
Communication and changes: Talk to customers about the complex parts of the design and suggest changes to make sure the design can be made and is cost effective.
Prototype testing: For very complex projects, we may make a prototype or samples first to test the design and make sure it can be made the way it’s supposed to be made.
How do we ensure the uniqueness of our products in the market?
Before you start a project, you can have both parties sign a Non-Disclosure Agreement (NDA) to make sure that all the information, designs, and details about the product are legally protected and that you won’t be revealing any of your client’s trade secrets.
What kind of finish is needed?
There are many choices for surface treatment, depending on what you’re making and what you need. You can powder coat it, paint it, electroplate it, anodize it, galvanize it, and so on. Each of these treatments has its own characteristics and situations where it’s appropriate.
What kind of process flow is needed?
Process flow: material preparation, cutting (laser cutting, plasma cutting, etc.), bending, welding, surface treatment and other steps.
Selection of process: Based on the product design, functional requirements and selected materials, determine the most suitable processing technology and the corresponding process flow.
What kind of after-sales service and support do you provide?
Quality assurance: We guarantee the quality for a certain period of time and offer free repair or replacement service if there are any quality issues.
Technical support: We offer technical consultation to help you solve any problems you encounter during installation and use.
Repair and maintenance: For some products, we offer repair and regular maintenance services to ensure long-term, stable operation.
Spare parts supply: We provide the necessary spare parts support so you can quickly replace any damaged or worn parts.
Training services: We offer operation and maintenance training as needed to help you better understand and use our products.
Design update support: For ongoing projects we’re working on together, we offer design update and improvement support to help you adapt to market changes and technological advances.
